Voltage: 51.2V
Capacity: 200Ah
Energy: 10.24 kWh
Dimensions: 482/438/540/480 mm
Weight: 159.5±0.5kg
Cycle life: >6000 times
BMS Communication: RS485/RS232/CAN
Charge Voltage: 54.4V-55.2V Charge Temperature: 0-55℃
Discharge Temperature: -10-55℃
Customization: Available for tailored voltage, capacity, and dimensions.
Main Features
Looking to boost your energy storage? Maybe the Server Rack Battery 48V 10kWh is what you need. This battery seamlessly fits into various energy systems, whether it’s for home storage or industrial use. Let’s dive into the details to see why this battery is a solid choice for your energy needs.
One of the standout features of this battery is its long cycle life – over 6000 cycles at 80% DOD!
This means the battery has a lifespan of over 10 years. Its automotive A+ cells ensure consistent, stable output to keep your system running smoothly.

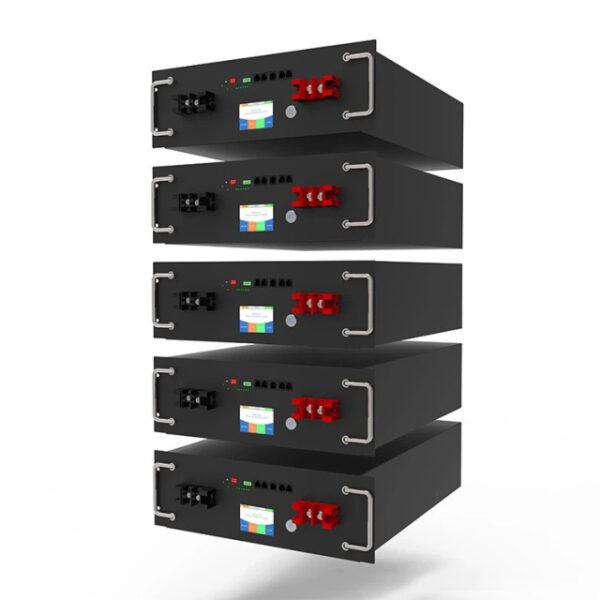

Flexibility is key. You can choose between 48V or 51.2V, depending on your needs. The battery pack is modular, so you can easily expand the storage capacity as your energy needs grow. The system is also highly efficient, allowing you to store and convert energy with minimal losses, thus optimizing the flow of energy in your home or business.Don’t worry about the weather – this battery operates perfectly in a wide temperature range of -20°C to 60°C.
Technical Specifications:
| Product Specification | 51.2V200Ah x1P | 51.2V200Ahx2P | 51.2V200Ah x3P | 51.2V200Ah x4P |
| Nominal Voltage | 51.2V | 51.2V | 51.2V | 51.2V |
| Nominal Capacity | 200Ah | 400Ah | 600Ah | 800Ah |
| Battery Energy | 10.24Kwh | 20.56Kwh | 30.72Kwh | 40.96Kwh |
| Max Charge Current | 100A | 200A* | 300A* | 400A* |
| Max Discharge Current | 200A | 400A* | 600A* | 800A* |
| Recommended load | 5~8Kw | 5~10Kw | 8~12Kw | 10~20Kw |
| Charging Cut-off Voltage | 57.6V±0.2V | |||
| Discharging Cut-off Voltage | 44.8V±0.2V | |||
| Cell Type | LiFePO4Battery | |||
| Terminal | M8 | |||
| Case Material | MetalBox | |||
| Communication Mode | RS485/CAN | |||
| Charge Temperature Range | 0~45 | |||
| Discharge Temperature Range | -5~55 | |||
| Cycle Life | ≥6500 Cycles | |||
| Designed Life | 12Years | |||
| Colour | black | |||
| Weight (WithoutRack) | 79.5±0.5Kg | 159.5±0.5Kg | 238.5±0.5Kg | 397.5±0.5Kg |
| Dimensions(LxWxH)/ WithoutRack | 482/438*540*240mm | 482/438*540*480mm | 482/438*540*720mm | 482/438*540*960mm |
| Dimensions(LxWxH)/ WithRack | 502*545*265mm | 502*545*530mm | 502*545*795mm | 502*545*1056mm |
Application Scenarios:
This battery isn’t limited to just one or two uses-it’s versatile enough to power multiple applications:
Household Energy Storage: Keep your home powered during outages or store excess solar energy for later use.
UPS Systems: Ensure a stable power supply for critical systems like data centers or server rooms.
Telecommunications: Power base stations and communication equipment with reliable backup energy.
Solar Energy Systems: Pair with solar panels to store energy efficiently and reduce reliance onthe grid.
Wherever you need reliable, long -lasting energy storage, the Server Rack Battery 48V delivers.
